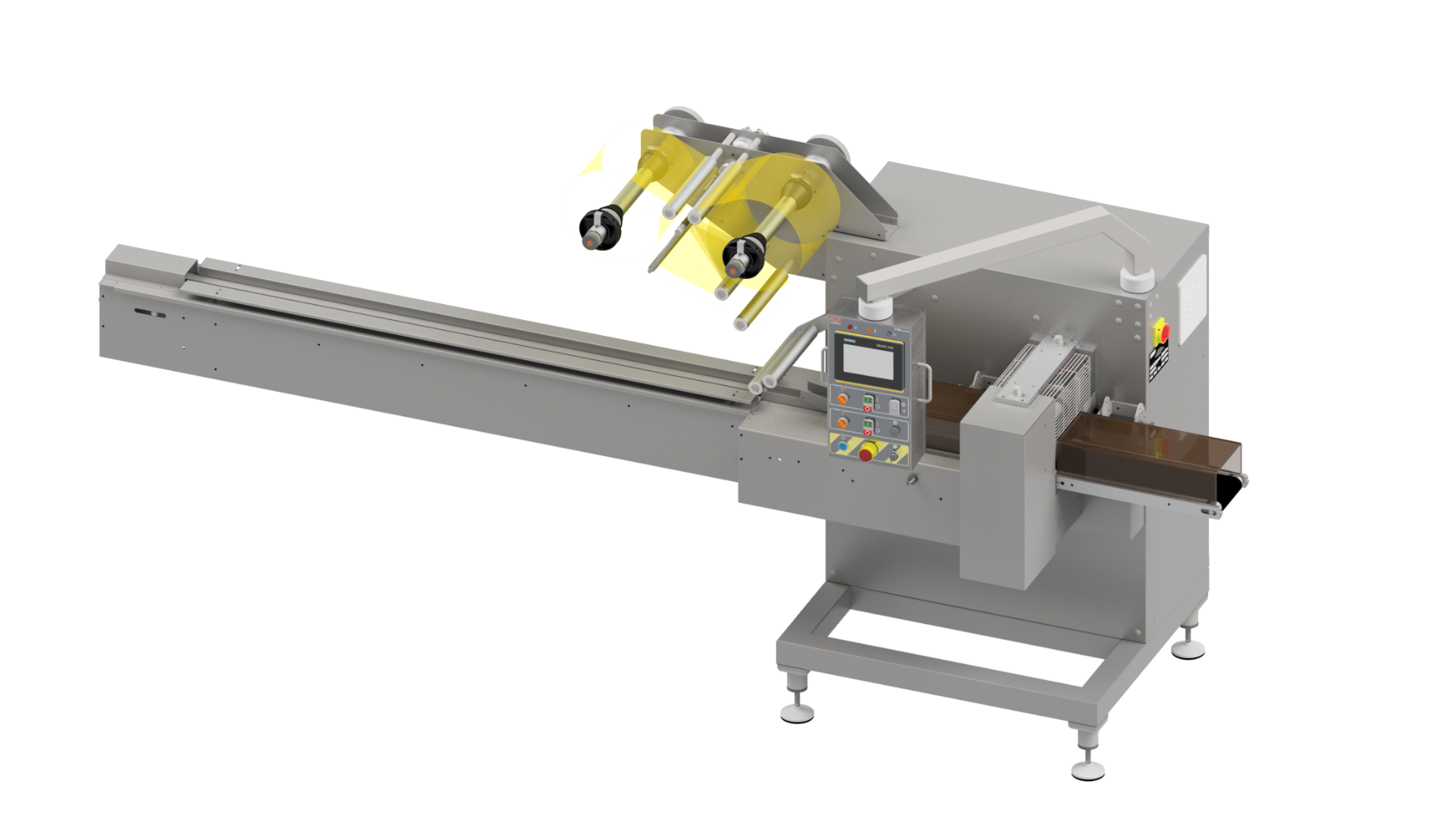

M200 Wrapping Machine
Capacity from 1.200 to 5.000 pcs/h
Ideal to wrap products like:
Icecreamor water ice stick
Round, square or rectangular IC sandwich
Russian cups/Ball top cone
Icecream slice with or without coating
Others products type to be evaluate
Cold & Hot seal possibility
Maximum & Minimum foil/paper thickness, from 20 to 40μ
Compact Design (W 1.000 x L 2.900 x H 1.600mm)
Plug & Play machine
Servo driven
PLC controlled with touch screen HMI
Double reel holder (double reel on request)
Fixed dimension folding box
No.2 couples of sealing roller for fin seal (the first copule tiltable)
Single jaws for cross sealing (double jaws type on request)
Max reel width 300mm (others reel width on request)
PIP feaure included
Standard Equipment
Double reel holder
Single cutting jaws
Fixed folding box
Picture in place
Three pair of sealing rollers
Tiltable first pair of sealing rollers
Optionals
Automatic reel splicer
Double cutting jaws
Mechanical predisposition for printer
No product no bag
TECHNICAL DATA
Weight
400Kg
Dimensions
1000x2900xh1600mm
Capacity
6000pcs/h
Max Bobin Reel Width
3-400mm
Electric Automation
Siemens
Rockwell Automation
