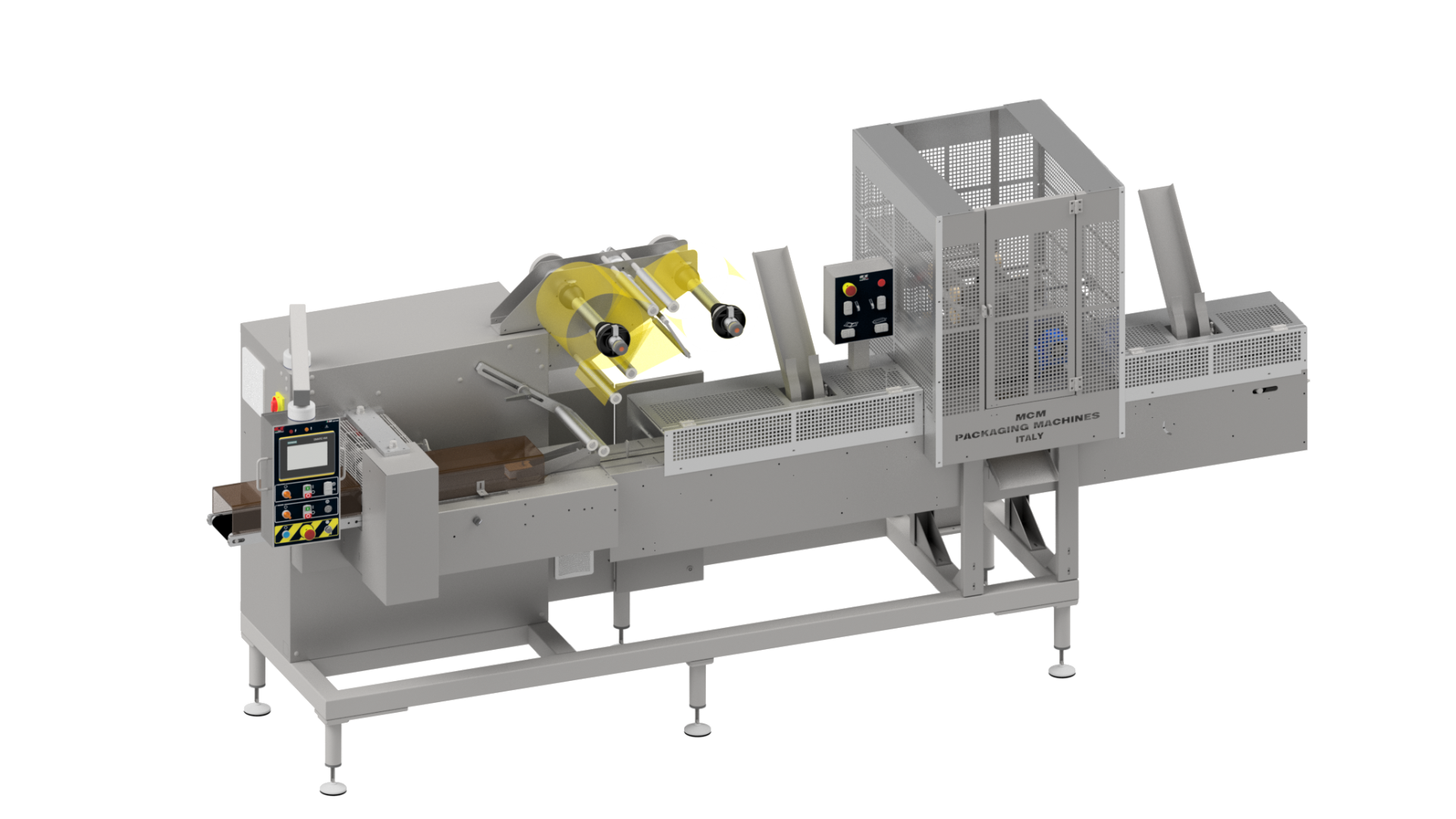

M200 Sandwich Machine
Capacity from 3.600 to 5.000 pcs/h
For the production of full sandwich in different shape and biscuit type like:
Round, square or rectangular shape
Printed, Cookies or wafer biscuit type
Double wire ice cream cutter, servo driven
Maximum & Minimum foil/ paper thickness, from 20 to 40μ
Possibility of extruding 1, 2 or 3 colors Ice cream in different pattern
With or without inclusions and ripple
Cold& Hot seal possibility
Plug & Play machine
Servo driven
PLC controlled with touch screen HMI
Double reel holder
Fixeddimension folding box
No.2 couples of sealing roller for fin seal
Max reel width 300mm
PIP feaure included
Standard Equipment
Double reel holder
Single cutting jaws
Fixed folding box
Picture in place
Two pair of sealing rollers
Tiltable first pair of sealing rollers
Optionals
Automatic reel splicer
Double cutting jaws
Mechanical predisposition for printer
TECHNICAL DATA
Weight
700Kg
Dimensions
1000x3900xh1600mm
Capacity
6000pcs/h
Max Bobin Reel Width
300mm
Electric Automation
Siemens
Rockwell Automation
